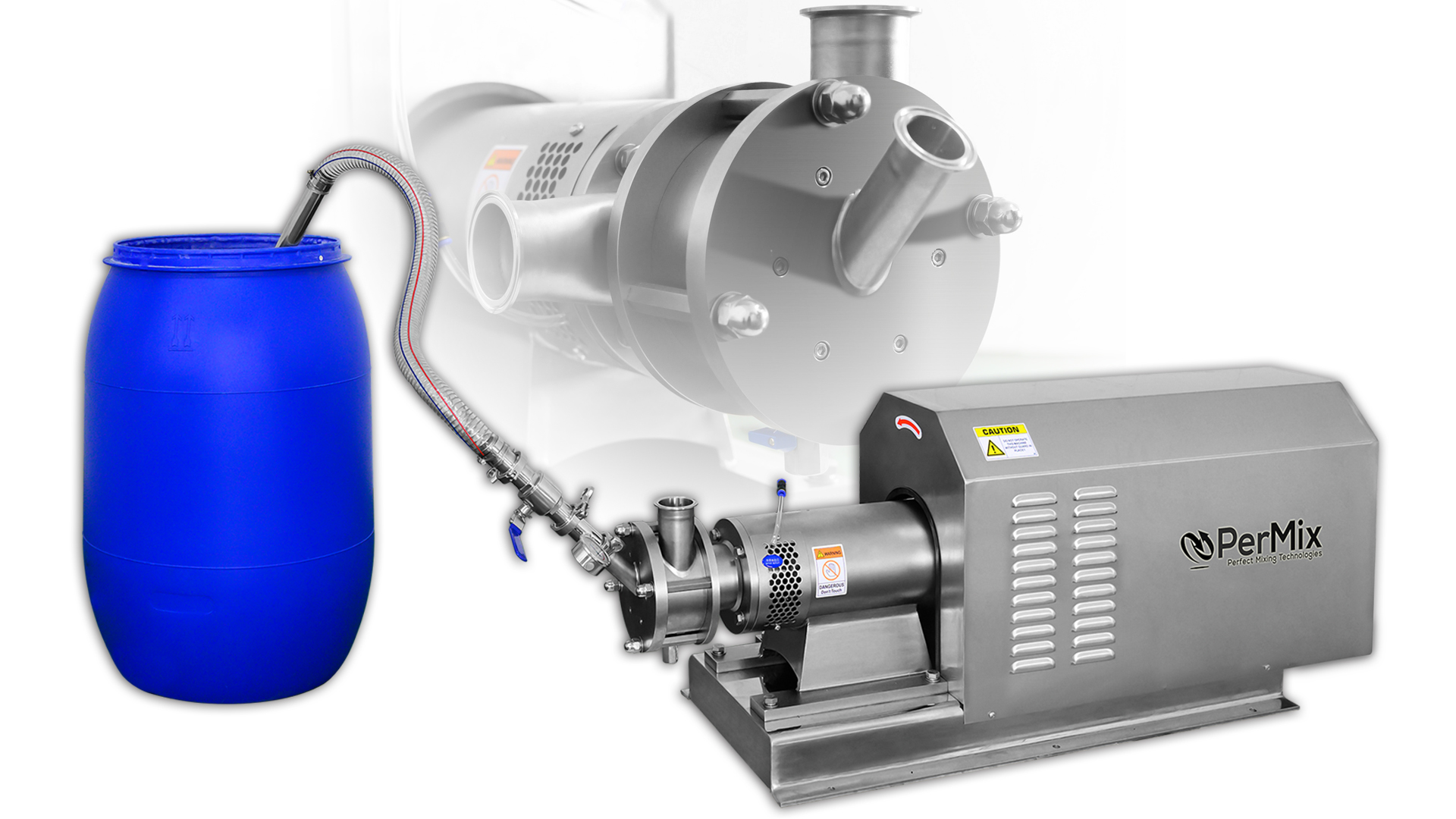

PerMix Inline Powder Induction Mixer

PerMix PT-C/Y-120 Inline Powder Liquid Mixer – 220V

High-Efficiency Inline Powder & Liquid Mixing Solution
The PerMix PT-C/Y-120 Inline Powder Liquid Mixer is designed to instantly blend powders into liquids for smooth, lump-free, and homogeneous results. Ideal for food, beverage, pharmaceutical, chemical, and cosmetic industries, this unit provides superior dispersion and hydration of powders while eliminating the need for pre-mixing tanks or long batch times.

Key Features

• Capacity:

  • Liquid throughput: ~10 tons/hour (water)

  • Powder addition (via hand wand): 1–5 kg/min (product dependent)

• Construction:

  • Contact parts: SS304 stainless steel

  • Non-contact parts: SS304 stainless steel

  • O-rings: Viton or silicone rubber

• Mixing Technology:

  • Inline rotor-stator dispersing head (toothed stator/rotor design)

  • Single mechanical seal for reliability

  • Direct-driven motor for consistent power transfer

• Included Accessories:

  • Stainless steel hand-held wand

  • 1-meter flexible hose

  • Ball valve and vacuum gauge for powder feed control

• Performance Parameters:

  • Operating pressure: ≤3 barG (higher available as an option)

  • Differential pressure: ≤2 bar

  • Ambient temperature operation

• Drive Unit:

  • Voltage: 220V, 1-phase, 50Hz

  • Motor power: 11 kW

  • Motor by ABB, Siemens, WEG, or equivalent

• Speed Control:

  • Standard fixed speed (~3000 rpm)

  • Optional variable speed control via frequency converter

• Dimensions & Weight:

  • LxWxH: ~1200 x 450 x 500 mm

  • Weight: ~300 kg

Applications

• Food & Beverage: Milk powders, protein powders, starches, gums, sugar, cocoa, and emulsions

• Pharmaceuticals: Powdered actives into syrups, reconstitution of suspensions

• Cosmetics: Creams, gels, lotions, serums

• Chemicals: Pigments, resins, adhesives

Advantages

• Instant Powder Wetting – Eliminates clumps and fisheyes

• High Shear Mixing – Ensures complete dispersion and hydration

• Compact Inline Design – Reduces floor space and processing time

• Easy Operation – Hand wand allows controlled powder dosing directly into the liquid stream

• Hygienic Construction – Stainless steel build for sanitary applications

Price: Contact us for a competitive quote
Condition: New – Ready to ship
Location: Available for immediate worldwide delivery
