When to Choose Top-Mount vs Bottom-Mount Homogenizers (and When Not To)

Top-mount and bottom-mount homogenizers both deliver high shear—but where that shear enters the vessel, how it interacts with flow, and how it integrates with sanitation and temperature control determines which is the right choice. Selection errors here don’t cause dramatic failures; they cause quiet instability that shows up later as separation, texture drift, or inconsistent batches.

At PerMix, homogenizer selection is driven by flow behavior and process risk, not mounting convenience.

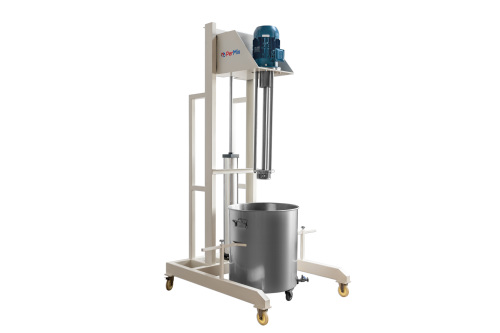

When a Top-Mount Homogenizer Is the Right Choice

Top-mount homogenizers are typically the best solution when one or more of the following apply:

Wide Batch Size Range
Adjustable positioning allows effective shear across varying fill levels.

Retrofit Into Existing Vessels
Top-entry designs integrate easily without bottom penetrations.

Lower to Moderate Viscosity Liquids
Flow remains responsive to bulk agitation.

Flexible Process Development
R&D and pilot environments benefit from access and adjustability.

Combined with a Bulk Agitator
Top-mounted shear complements top-entry mixing patterns.

Top-mount homogenizers are often chosen for versatility and adaptability.

When a Bottom-Mount Homogenizer Is the Right Choice

Bottom-mount homogenizers are preferred when:

Hygiene & CIP Are Critical
Bottom-mounted heads eliminate dead zones and improve cleanability.

Viscosity Is Moderate to High
Natural downward flow feeds material directly into the shear zone.

Emulsion Quality Is Non-Negotiable
Consistent residence time through the homogenizing head improves droplet uniformity.

Vacuum Processing Is Used
Bottom-mount designs integrate cleanly with sealed vessels.

Production Is Repetitive & Validated
Fixed geometry improves batch-to-batch repeatability.

Bottom-mount homogenizers are chosen for control, efficiency, and sanitation.

Top-Mount vs Bottom-Mount: Flow Interaction Matters

Top-mount homogenizers:

• Rely more on bulk circulation

• Are sensitive to fill level and vortex behavior

• Offer flexibility at the expense of flow certainty

Bottom-mount homogenizers:

• Receive consistent feed from vessel circulation

• Are less sensitive to operator technique

• Deliver more uniform shear history

The difference shows up in repeatability, not just shear intensity.

When In-Tank Homogenization May Not Be the Best Choice

In-tank homogenizers—top or bottom—may be unnecessary when:

Processing Is Fully Continuous
Inline homogenizers integrate better with continuous flow.

Residence Time Must Be Extremely Short
High-throughput systems may favor inline shear.

Product Is Highly Shear-Sensitive
Gentle blending or static mixing may be sufficient.

Air Removal Is the Primary Goal
Deaerators address gas—not structure.

Homogenizers refine structure. They should not be forced into roles they are not designed for.

Top- or Bottom-Mount vs Inline Homogenizers

Inline homogenizers:

• Excel in continuous systems

• Depend on recirculation loops

• Are sensitive to upstream air and temperature

In-tank homogenizers:

• Control full-batch shear history

• Integrate with heating, cooling, and vacuum

• Simplify validation and cleaning

Inline systems move product fast.
In-tank systems shape product deliberately.

Why Correct Selection Matters

Choosing the wrong mounting approach leads to:

• Uneven droplet size distribution

• Inconsistent texture

• Longer processing times

• Difficult scale-up

Homogenization problems are expensive because they:

• Appear after packaging

• Affect shelf life

• Trigger reformulation attempts

Correct placement prevents these issues entirely.

Why PerMix’s Approach Is Different

At PerMix, top- and bottom-mount homogenizers are specified based on:

• Flow regime analysis

• Viscosity profile

• Sanitary and vacuum requirements

• Scale-up risk

They are selected as part of a system, not as isolated shear devices.

Top & Bottom Mount Homogenizer Design & Construction

Top- and bottom-mount homogenizers are deceptively compact pieces of equipment, but they operate under extreme mechanical, thermal, and hygienic demands. They must deliver consistent high shear, withstand continuous duty, integrate cleanly with vessels, and—especially in regulated industries—remain fully cleanable and seal-tight.

At PerMix, in-tank homogenizers are engineered as vessel-integrated systems, not bolt-on shear heads.

Rotor–Stator Geometry & Shear Design

At the heart of every homogenizer is the rotor–stator assembly.

PerMix designs focus on:

• Precisely machined rotor–stator gaps

• Consistent shear zones for predictable droplet size reduction

• Stable operation across a wide viscosity range

• High shear efficiency without excessive heat generation

Shear is applied uniformly and repeatedly, not randomly or aggressively.

Shaft Design & Mechanical Stability

High shear places intense loads on shafts and bearings.

PerMix homogenizers incorporate:

• Rigid shaft construction to prevent deflection

• Precision balancing for vibration-free operation

• Bearings sized for continuous, high-speed duty

• Mechanical isolation between drive components and product zone

Mechanical stability is essential for both performance and seal life.

Seal Engineering & Hygiene

Seals are the most critical—and most failure-prone—component of a homogenizer.

PerMix designs include:

• Sanitary mechanical seals compatible with high shear and heat

• Seal materials selected for chemical, thermal, and CIP resistance

• Configurations suitable for vacuum operation when required

Seal integrity protects both product purity and equipment longevity.

Top-Mount Structural Integration

Top-mount homogenizers require careful vessel integration.

Key design considerations include:

• Reinforced top plates or bridge supports

• Proper shaft length and rigidity for immersion depth

• Alignment with bulk agitators to avoid flow conflict

PerMix ensures top-mounted systems deliver shear without inducing vortex instability or air entrainment.

Bottom-Mount Structural Integration

Bottom-mount homogenizers demand even greater precision.

PerMix bottom-entry designs feature:

• Flush-mounted, hygienic installation

• No dead zones beneath the shear head

• Reinforced bottom nozzles to handle shear loads

• Clean-in-place compatibility without disassembly

Bottom-mount designs are optimized for flow efficiency and sanitation, not convenience.

Heating, Cooling & Thermal Considerations

Shear generates heat—especially during emulsification.

PerMix integrates homogenizers into vessels with:

• Full-coverage heating and cooling jackets

• Continuous wall scraping (when paired with anchors)

• Controlled shear profiles to limit thermal spikes

Thermal management protects both product structure and ingredient stability.

Materials of Construction & Surface Finish

In-tank homogenizers often process finished or near-finished products.

PerMix offers:

• 304 stainless steel for general liquid processing

• 316 / 316L stainless steel for food, cosmetic, pharmaceutical, and chemical use

• Polished internal surfaces for hygiene and cleanability

Material and finish selection align with both process chemistry and regulatory needs.

CIP & Sanitary Design

For hygienic applications, PerMix homogenizers are:

• Fully CIP-compatible

• Designed with drainable geometries

• Free of crevices and product traps

Cleanability is engineered into the design—not added as an afterthought.

Drive Systems & Control Integration

Homogenizer performance depends on speed stability.

PerMix systems support:

• Variable frequency drives (VFDs)

• Precise speed control for shear tuning

• Integration with PLC/HMI systems

• Recipe-based control for validated processes

Automation ensures repeatable emulsification and dispersion across batches.

Built for Continuous, High-Shear Duty

Every design decision in a PerMix top- or bottom-mount homogenizer is made to:

• Deliver consistent shear

• Maintain hygienic integrity

• Operate reliably under continuous load

• Scale from pilot to production without surprises

These are not accessories.
They are structural elements of liquid processing systems.

Top & Bottom Mount Homogenizer Performance & Scale-Up Considerations

Homogenizers do not scale the way mixers do. The biggest mistake in liquid processing is assuming that more power or higher RPM automatically delivers the same emulsion quality at larger volume. In reality, homogenizer performance is governed by shear history, residence time, temperature rise, and flow integration—all of which change with scale.

At PerMix, in-tank homogenizers are scaled by preserving structural outcomes, not by copying lab settings.

What “Performance” Actually Means in Homogenization

Homogenizer performance is not defined by motor size. It is defined by:

• Final droplet size distribution

• Emulsion or suspension stability over time

• Texture and mouthfeel (where applicable)

• Absence of foam or air defects

• Thermal stability during and after processing

If these outcomes change at scale, the homogenizer has failed—regardless of horsepower.

Shear Is Local, Not Global

Homogenizers apply localized extreme shear, not vessel-wide energy.

As vessel size increases:

• The homogenizing head processes only a fraction of the batch at any moment

• Bulk circulation determines how often material passes through the shear zone

• Poor circulation = uneven shear history

PerMix systems are designed so every portion of the batch experiences equivalent shear exposure, regardless of vessel size.

Residence Time Through the Shear Zone

Residence time is the hidden variable in homogenization.

At small scale:

• Material passes through the shear head frequently

• Total shear exposure accumulates quickly

At large scale:

• Poor circulation can starve the homogenizer

• Shear exposure becomes uneven

• Droplet size distribution widens

PerMix addresses this by:

• Matching homogenizer capacity to vessel circulation rate

• Coordinating homogenizer speed with bulk agitation

• Preventing “short-circuiting” where material bypasses the shear zone

Top-Mount vs Bottom-Mount: Scale Behavior Differences

Top-mount homogenizers

• More sensitive to fill level as scale increases

• Depend heavily on bulk agitator design

• Require careful coordination of flow patterns

Bottom-mount homogenizers

• Receive consistent feed from natural vessel circulation

• Scale more predictably at higher viscosities

• Offer more uniform shear history at production scale

This is why bottom-mount designs often dominate large-scale, quality-critical systems.

Heat Generation & Thermal Management at Scale

Shear creates heat. At scale, this becomes non-negotiable.

As volume increases:

• Total shear energy increases

• Heat dissipation per unit volume decreases

• Localized overheating becomes possible

PerMix manages this through:

• Full-coverage vessel jackets

• Continuous wall scraping (when applicable)

• Controlled shear profiles rather than maximum speed operation

Thermal control protects emulsion structure and ingredient integrity.

Viscosity Effects on Performance

As viscosity increases:

• Flow into the homogenizer becomes more resistant

• Residence time through the shear zone increases

• Heat generation accelerates

PerMix homogenizers are sized and integrated to:

• Maintain consistent feed to the rotor-stator

• Avoid cavitation or starvation

• Preserve shear efficiency across viscosity changes

Scale-up must anticipate final viscosity, not just starting conditions.

Batch Size & Fill Level Sensitivity

In-tank homogenizers are sensitive to geometry.

Best practices include:

• Maintaining defined working volume ranges

• Ensuring full submergence of the homogenizing head

• Avoiding overfilling, which suppresses circulation

• Avoiding underfilling, which destabilizes shear

PerMix provides application-specific working volume guidance to protect scale-up performance.

Scale-Up From Lab to Production

Successful homogenizer scale-up preserves:

• Shear density at the rotor-stator

• Number of effective shear passes per unit volume

• Circulation patterns within the vessel

• Thermal flux relative to batch size

PerMix scale-up methodology focuses on matching emulsion outcomes, not duplicating lab RPMs.

Repeatability & Process Control

Repeatable homogenization requires:

• Stable speed control via VFD

• Coordinated bulk agitation

• Temperature monitoring and control

• Recipe-based automation

PerMix PLC/HMI systems ensure every batch experiences the same shear history, regardless of operator.

Why Homogenizer Scale-Up Discipline Matters

Poorly scaled homogenizers lead to:

• Emulsions that look correct initially but separate later

• Texture drift during storage

• Increased foam during filling

• Costly reformulation attempts

These failures are rarely blamed on the homogenizer—but they originate there.

Top & Bottom Mount Homogenizer Applications – Industry-Specific Liquid Processing Workflows

Top- and bottom-mount homogenizers earn their value after the mixer stops spinning—when products sit on shelves, move through fillers, or face real-world handling. These systems are applied where droplet size, suspension stability, texture, and appearance must remain consistent long after production ends.

Below are real-world liquid workflows where in-tank homogenization is a defining step—not a convenience.

Food & Beverage Processing

Primary challenges:

• Emulsion stability over shelf life

• Texture and mouthfeel consistency

• Oil separation

• Foam control during filling

Typical workflow:

1. Ingredient Blending in Vessel

2. Heating (if required)

3. In-Tank Homogenization (Top or Bottom Mount)

4. Cooling Under Controlled Agitation

5. Transfer to Filling or Further Processing

Common products:

• Sauces and dressings

• Dairy and plant-based beverages

• Syrups and liquid concentrates

Why it works:
In-tank homogenization produces uniform droplet size without recirculation loops that introduce air.

Dairy & Plant-Based Beverages

Primary challenges:

• Fat separation

• Protein stabilization

• Foam sensitivity

• Thermal history control

Typical workflow:

1. Hydration & Blending

2. Heating / Pasteurization

3. Bottom-Mount Homogenization

4. Cooling & Conditioning

5. Aseptic or Cold Filling

Why it works:
Bottom-mount homogenizers receive consistent feed and maintain stable structure at production scale.

Cosmetics & Personal Care Liquids

Primary challenges:

• Visual clarity

• Texture smoothness

• Long-term emulsion stability

• Air sensitivity

Typical workflow:

1. Phase Preparation

2. Controlled Heating

3. In-Tank Homogenization

4. Cooling & Conditioning

5. Deaeration or Direct Filling

Common products:

• Shampoos

• Conditioners

• Liquid soaps

• Serums

Why it works:
Homogenization refines structure without trapping air—critical for premium appearance.

Pharmaceutical Liquids & Semi-Solids

Primary challenges:

• Uniform API distribution

• Repeatable droplet size

• Hygienic design

• Validation requirements

Typical workflow:

1. Solution or Suspension Preparation

2. In-Tank Homogenization

3. Thermal Conditioning

4. Transfer to Filling or Sterile Handling

Why it works:
In-tank systems simplify validation and ensure every batch experiences identical shear history.

Chemical & Specialty Emulsions

Primary challenges:

• Oxidation sensitivity

• Phase stability

• Controlled dispersion

Typical workflow:

1. Carrier Liquid Charging

2. Additive Introduction

3. Top- or Bottom-Mount Homogenization

4. Cooling or Conditioning

5. Packaging or Further Processing

Why it works:
Homogenization stabilizes emulsions without excessive turbulence or external pumping.

Nutraceutical & Functional Liquids

Primary challenges:

• Uniform dispersion of actives

• Stability during storage

• Clean processing

Typical workflow:

1. Base Liquid Preparation

2. Active Addition

3. In-Tank Homogenization

4. Cooling & Conditioning

5. Transfer to Filling

Why it works:
Precise shear protects sensitive actives while maintaining consistent delivery.

R&D, Pilot & Scale-Up Environments

Primary challenges:

• Translating lab results to production

• Understanding shear effects

• Predictable scale-up

Typical workflow:

1. Pilot-Scale Homogenization Trials

2. Droplet Size & Stability Optimization

3. Production Scale Replication

Why it works:
In-tank homogenization physics scale reliably when flow and shear exposure are preserved.

Why Application-Specific Homogenization Matters

Top- and bottom-mount homogenizers perform best when:

• Integrated with bulk mixing and thermal control

• Matched to viscosity and flow regime

• Positioned to refine—not replace—mixing

Application-driven integration results in:

• Longer shelf life

• Improved texture and appearance

• Reduced downstream issues

• Predictable, repeatable production

Why PerMix’s Approach Is Different

At PerMix, top- and bottom-mount homogenizers are applied as:

• Structure-defining tools, not generic shear devices

• Integrated vessel systems—not recirculation add-ons

• Scalable solutions from pilot to full production

They are selected based on product behavior and quality risk, not just flow rate.

Final Takeaway

In liquid processing:

• Mixing distributes ingredients

• Homogenization defines structure

Top- and bottom-mount homogenizers exist because how a liquid looks and behaves tomorrow matters more than how fast it mixes today.
