When to Choose a 3-D Mixer (and When Not To)

3-D mixers are selected when exceptional blend uniformity must be achieved without shear, especially in formulations that resist uniform mixing in conventional tumble mixers. They are not brute-force machines; they are precision tools for difficult blends where particle movement—not energy—is the solution.

Knowing when a 3-D mixer is the right choice (and when it is not) prevents over-engineering and ensures predictable results.

When a 3-D Mixer Is the Right Choice

A 3-D mixer is typically the correct solution when one or more of the following conditions apply:

Difficult-to-Blend Formulations
Blends with moderate differences in particle size or density that segregate in V-blenders or double cone mixers benefit from continuous multi-axis movement.

High Homogeneity Requirements
Applications demanding extremely tight blend uniformity—often pharmaceutical or high-value materials—are well suited for 3-D mixing.

Shear-Sensitive or Fragile Materials
Because there are no internal agitators, particles are protected from breakage, smearing, or heat generation.

Low Fill Levels or Small Batches
3-D mixers perform effectively across a wider range of fill volumes than traditional tumble mixers.

R&D, Pilot, and Scale-Up Environments
Formulation development benefits from the flexibility and repeatability of true three-dimensional motion.

Typical Scenarios That Favor 3-D Mixers

3-D mixers are commonly chosen for:

• Pharmaceutical actives and excipient blends

• Nutraceutical formulations

• Specialty chemicals

• Pigments, colors, and additives

• High-value or low-volume products

These applications value uniformity and reliability over speed.

When a 3-D Mixer May Not Be the Best Choice

Despite their advantages, 3-D mixers are not universal solutions.

A 3-D mixer may be inefficient or unsuitable when:

Very Large Production Volumes Are Required
3-D mixers are typically used for lab, pilot, and small-to-medium production scales.

Aggressive Liquid Addition Is Required
They are not designed for liquid dispersion or wet mixing.

Granulation or Agglomeration Is Required
3-D mixers do not intentionally form granules.

Highly Cohesive or Sticky Materials Are Processed
Materials that do not flow freely may not redistribute effectively.

Very Short Mixing Times Are Critical
Higher-energy mixers may be better suited for rapid blending.

3-D Mixer vs V-Blender — Decision Logic

At a high level:

• Choose a V-blender for simple, free-flowing powders

• Choose a 3-D mixer when conventional tumble motion produces segregation

Both are low-shear mixers, but the 3-D mixer adds continuous spatial reorientation.

3-D Mixer vs Double Cone Mixer — Decision Logic

• Double cone mixers rely on symmetrical tumbling

• 3-D mixers disrupt fixed flow paths through multi-axis motion

3-D mixers are often chosen when a double cone mixer achieves partial—but not sufficient—uniformity.

Why Correct Selection Matters

Choosing the correct mixer:

• Improves blend consistency

• Reduces segregation risk

• Protects particle integrity

• Simplifies scale-up

• Reduces development time and rework

Using a 3-D mixer where higher energy is required—or using a high-energy mixer where gentleness is needed—both lead to compromised results.

3-D Mixer Design & Construction

PerMix 3-D mixers are engineered to deliver true multi-axis motion with absolute mechanical stability. Unlike simple tumble mixers, a 3-D mixer’s performance depends on the precision of its motion system, structural balance, and vessel integrity. Every design element is focused on repeatable movement, gentle handling, and long service life.

True Three-Dimensional Motion System

The defining feature of a 3-D mixer is its simultaneous movement in multiple axes.

PerMix 3-D mixers are designed to:

• Rotate the vessel around its own axis

• Oscillate and tumble the vessel through additional planes

• Continuously change particle orientation and flow paths

This eliminates repetitive tumble patterns and prevents particle stratification.

Mixing Vessel Geometry

The vessel geometry is optimized for uniform redistribution without dead zones.

Design features include:

• Smooth internal contours

• Symmetrical shape to support even movement

• No internal agitators, blades, or obstructions

This ensures particles move freely as the vessel changes orientation.

Vessel Fabrication & Balance

Because the vessel moves in multiple planes, balance and rigidity are critical.

PerMix design features include:

• Precision-fabricated vessels with tight tolerances

• Dynamic balancing of the vessel assembly

• Rigid construction to resist fatigue over repeated cycles

Proper balance ensures smooth motion, reduces vibration, and protects bearings and drives.

Drive System & Motion Control

3-D mixers require carefully synchronized drive systems.

PerMix designs include:

• Gear-reduced drives for smooth torque delivery

• Precisely engineered linkages or motion arms

• Variable frequency drives (VFDs) for speed control

Speed and motion profiles can be adjusted to suit material behavior without introducing shear.

Support Frame & Structural Integrity

The support structure must withstand continuous multi-directional loads.

PerMix frames are designed with:

• Heavy-duty welded construction

• Reinforced mounting points

• Stable footprint to prevent movement or resonance

This ensures long-term mechanical stability and safe operation.

Materials of Construction

3-D mixers are commonly used in hygienic and high-purity environments.

Available materials include:

• Carbon steel for general industrial use

• 304 stainless steel for food and non-corrosive applications

• 316 / 316L stainless steel for pharmaceutical and corrosive environments

Internal surfaces can be polished to reduce adhesion and simplify cleaning.

Charging & Discharge Design

Efficient loading and unloading are essential for batch consistency.

Design features include:

• Secure charging ports or quick-access lids

• Centrally located discharge ports

• Dust-tight sealing options

Port placement is engineered to avoid disrupting internal movement.

Sanitary & Hygienic Design Features

For regulated industries, PerMix offers hygienic 3-D mixer designs.

Features include:

• Smooth internal finishes

• Continuous welds

• Minimal crevices

• CIP-ready configurations (where applicable)

These features support validation and rapid changeover.

Built for Gentle, Reliable Motion

Every component of a PerMix 3-D mixer supports:

• Zero internal shear

• Minimal heat generation

• Consistent, repeatable blending

• Long mechanical service life

This design philosophy ensures reliable performance even for demanding, segregation-prone blends.

3-D Mixer Options & Customization

PerMix 3-D mixers are deliberately simple at their core, but they can be carefully customized to support specific materials, cleanliness standards, and operating environments—without compromising the fundamental advantage of true multi-axis, low-shear motion.

Every option is engineered to enhance control, not add force.

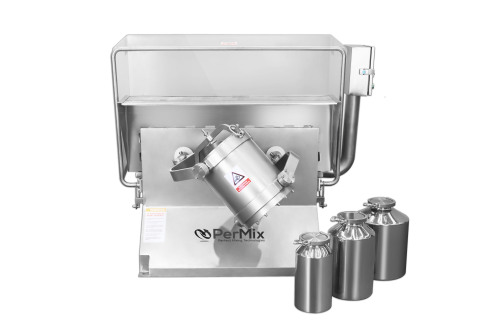

Mixing Vessel Options (Removable & Dedicated Vessels)

Many 3-D mixers are used in environments requiring frequent changeovers or strict containment.

Available configurations include:

• Fixed vessels for dedicated product lines

• Removable vessels for fast changeover and cleaning

• Multiple vessels per drive for flexible production scheduling

Removable vessels are especially valuable in pharmaceutical and R&D environments.

Materials of Construction & Surface Finishes

3-D mixers are frequently used in hygienic and high-purity applications.

Customization options include:

• Carbon steel

• 304 stainless steel

• 316 / 316L stainless steel

• Polished internal finishes to reduce adhesion and simplify cleaning

Material selection supports corrosion resistance, validation, and long-term durability.

Sealing & Containment Options

For potent, fine, or hazardous powders, containment is critical.

Available options include:

• Dust-tight vessel seals

• Inert gas purge capability

• Containment-ready vessel designs

• O-ring or gasketed closures

These features protect operators and preserve product integrity.

Charging & Access Configurations

Flexible charging options improve ergonomics and process efficiency.

Available options include:

• Manual charging ports

• Quick-release lids or clamps

• Multiple inlet configurations

Port placement is designed to preserve internal redistribution and avoid dead zones.

Discharge Options

Discharge design affects cleanliness and repeatability.

Available discharge options include:

• Bottom discharge ports

• Side discharge ports

• Dust-tight discharge interfaces

• Integration with downstream hoppers or containers

Discharge systems are engineered to empty the vessel completely with minimal residue.

Controls & Automation

PerMix 3-D mixers can be supplied with control systems ranging from basic to advanced.

Available control options include:

• Simple start/stop and timer controls

• Variable speed control via VFD

• PLC and HMI systems with recipe management

• Data logging and batch traceability

Automation improves repeatability while preserving gentle mixing action.

Structural & Installation Options

Customization options are available to support plant integration.

These include:

• Floor-mounted or bench-top designs

• Skid-mounted systems

• Custom frames for cleanroom or lab environments

• Vibration-isolated mounting

These features improve safety, ergonomics, and reliability.

Designed to Preserve the Core Advantage

Every option offered on a PerMix 3-D mixer is evaluated against one guiding principle:

Does it preserve true three-dimensional, low-shear motion?

If the answer is yes, it belongs.
If not, a different mixer technology is recommended.

3-D Mixer Performance & Scale-Up Considerations

3-D mixers are selected when blend uniformity must be achieved without shear, even as batch size changes. Because 3-D mixers rely on multi-axis motion rather than energy input, their performance scales predictably—provided material behavior and fill discipline are maintained.

PerMix 3-D mixers are engineered so that motion geometry, not brute force, governs mixing performance at every scale.

Core Mixing Performance

3-D mixers achieve homogeneity through continuous spatial reorientation of the powder bed.

Performance is governed by:

• Multi-axis motion profile

• Vessel geometry and symmetry

• Batch fill level

• Particle flowability

• Differences in particle size and density

By constantly changing orientation, particles avoid settling into repetitive flow paths, resulting in highly uniform blends.

Mixing Time Characteristics

3-D mixers typically require moderate mixing times, balancing gentleness with effectiveness.

Performance benefits include:

• No particle breakage or attrition

• No frictional heat generation

• No compaction or smearing

• Stable blends that remain uniform after discharge

Mixing time is driven by redistribution, not energy intensity.

Scale-Up from Lab to Production

Scale-up in 3-D mixers focuses on preserving motion dynamics, not increasing speed.

PerMix scale-up methodology emphasizes:

• Maintaining consistent motion geometry

• Preserving optimal batch fill percentages

• Matching rotational and oscillation speed ratios

• Accounting for changes in bulk density

This allows blends developed in lab-scale 3-D mixers to translate directly to pilot and production units.

Batch Fill Level & Its Impact

Fill level plays a critical role in 3-D mixer performance.

Best practices include:

• Avoiding overfilling, which restricts internal redistribution

• Avoiding underfilling, which reduces particle interaction

• Operating within validated working volume ranges

PerMix provides application guidance to ensure optimal fill levels are maintained at all scales.

Segregation Control at Scale

3-D mixers are particularly effective at controlling segregation.

Design features that support this include:

• Constant disruption of gravity-driven settling

• Elimination of fixed tumble patterns

• Multi-directional particle movement

However, extreme differences in particle size or density should still be addressed upstream.

Liquid Addition Considerations (When Applicable)

3-D mixers are not designed for wet mixing, but minor liquid additions may be possible in limited cases.

When used:

• Liquid volumes remain small

• Addition rates are carefully controlled

• Mixing time is adjusted to maintain uniform distribution

These applications are evaluated case by case.

Repeatability & Batch Consistency

Repeatable performance is achieved through:

• Simple vessel design

• Stable, synchronized motion

• Balanced mechanical construction

• Optional automation and recipe timing

This minimizes operator dependency and supports validated processes.

Why Scale-Up Discipline Matters

Improper scale-up can result in:

• Incomplete blending

• Localized segregation

• Excessive mixing time adjustments

• False conclusions about mixer capability

PerMix 3-D mixers are engineered to avoid these pitfalls by applying proven multi-axis mixing principles from the earliest development stage.

3-D Mixer Applications – Industry-Specific Workflows

3-D mixers are applied when exceptional homogeneity is required without shear, particularly in blends that resist uniform mixing in conventional tumble or agitator-based mixers. Their continuous multi-axis motion makes them especially valuable for segregation-prone, high-value, or formulation-sensitive materials.

Below are common 3-D mixer workflows across industries.

Pharmaceutical Powders & Formulation Blends

Primary challenges:

• Potency uniformity

• Segregation of low-dose actives

• Fragile excipients

• Validation and containment

Typical workflow:

1. Particle Size Conditioning
   APIs and excipients are milled or classified to controlled size ranges.

2. 3-D Mixing
   Powders are blended using multi-axis motion to eliminate stratification.

3. Optional Removable Vessel Handling
   Vessel is transferred for discharge or cleaning.

4. Downstream Processing
   Blends move to encapsulation, tableting, or secondary blending.

Why it works:
True three-dimensional motion prevents actives from migrating or settling, even at low concentrations.

Nutraceutical & Dietary Supplement Blends

Primary challenges:

• Vitamin and mineral segregation

• Dust generation

• Maintaining label accuracy

• Small-to-medium batch flexibility

Typical workflow:

1. Ingredient Preparation
   Powders are screened or lightly milled.

2. 3-D Mixing
   Multi-axis motion redistributes ingredients uniformly.

3. Optional Vessel Exchange
   Removable vessels support rapid SKU changeover.

4. Packaging or Encapsulation

Why it works:
Gentle motion protects sensitive nutrients while improving blend reliability.

Fine Chemicals & Specialty Powders

Primary challenges:

• Density-driven segregation

• Fragile crystalline structures

• Heat sensitivity

Typical workflow:

1. Size Conditioning or Classification
   Materials are prepared for consistent flow.

2. 3-D Mixing
   Powders are blended without attrition or heat generation.

3. Optional Inert Atmosphere Operation

Why it works:
Continuous spatial reorientation minimizes segregation without mechanical stress.

Pigments, Colors & Additives

Primary challenges:

• Color consistency

• Fine particle segregation

• Low dosage accuracy

Typical workflow:

1. Pre-Blending or Conditioning
   Pigments are prepared for dispersion.

2. 3-D Mixing
   Multi-axis motion distributes pigments evenly through carriers.

3. Discharge to Downstream Processing

Why it works:
3-D mixing reduces color streaking and improves batch-to-batch consistency.

Advanced Materials & High-Value Powders

Primary challenges:

• Fine particle control

• Oxidation sensitivity

• Small batch precision

Typical workflow:

1. Micronization or Fine Milling
   Materials are prepared to tight specifications.

2. 3-D Mixing
   Blending occurs under controlled conditions with minimal stress.

3. Downstream Processing or Packaging

Why it works:
Low-shear multi-axis motion protects material structure and performance.

R&D, Pilot & Scale-Up Environments

Primary challenges:

• Repeatability across trials

• Predictable scale-up

• Frequent formulation changes

Typical workflow:

1. Lab-Scale 3-D Mixing Trials
   Formulations are evaluated for homogeneity.

2. Pilot-Scale Validation
   Motion profiles and fill levels are refined.

3. Production-Scale Replication

Why it works:
3-D mixers translate reliably from lab to production when motion geometry is preserved.

Why Application-Specific Workflows Matter

3-D mixers perform best when:

• Segregation risk exists

• Shear must be avoided

• Uniformity must be achieved through motion, not force

Application-driven workflows result in:

• Improved blend reliability

• Reduced segregation risk

• Easier scale-up

• Lower formulation rework

Milling vs Mixing vs Both — The 3-D Mixer Perspective

3-D mixers are exceptionally effective at eliminating segregation through motion, but like all low-shear mixing technologies, they depend on disciplined particle preparation upstream. A 3-D mixer will not correct extreme particle size or density disparities—it will faithfully redistribute what it is given.

Understanding when to mill, when to mix, and when to do both is critical to achieving reliable, scalable results with 3-D mixing.

What Milling Solves in 3-D Mixer Applications

Milling or size conditioning is often required before 3-D mixing to stabilize material behavior.

Milling is typically used to:

• Reduce oversized particles that dominate motion paths

• Narrow particle size distribution

• Improve bulk density alignment between ingredients

• Enhance overall flowability

While 3-D motion reduces segregation risk, severe particle mismatch must still be addressed upstream.

What 3-D Mixing Solves

3-D mixing solves redistribution challenges that conventional tumble mixers cannot.

3-D mixers are used to:

• Blend powders with moderate density or size differences

• Prevent stratification during mixing

• Achieve high homogeneity at low fill levels

• Preserve particle structure

They accomplish this without shear, compression, or heat.

When Milling Alone Is Enough

Milling alone may be sufficient when:

• Particle size is the final product specification

• Only one material is being processed

• No blending is required

Examples include:

• Fine powders prepared for packaging

• Single-material conditioning steps

In these cases, mixing adds no value.

When 3-D Mixing Alone Is Enough

3-D mixing alone is appropriate when:

• Particle size distribution is already controlled

• Ingredients have manageable density differences

• Gentle but effective redistribution is required

Examples include:

• Pharmaceutical pre-blends

• Nutraceutical formulations

• Specialty powder blends prone to segregation in V-blenders

Here, 3-D motion delivers uniformity without added process steps.

When You Need Milling and 3-D Mixing

Many demanding applications benefit from a combined milling and 3-D mixing approach.

This is recommended when:

• Raw materials arrive with variable particle size

• Low-dose actives must be evenly distributed

• Segregation risk must be minimized

• Scale-up repeatability is critical

In these cases:

• Milling prepares and stabilizes the powder

• 3-D mixing ensures uniform redistribution

Each step reinforces the other.

Why Integrated Milling Improves 3-D Mixer Performance

Integrating milling upstream of a 3-D mixer delivers:

• Faster achievement of uniformity

• Reduced segregation risk during mixing

• More predictable scale-up

• Shorter development timelines

• Improved batch-to-batch consistency

Attempting to rely solely on motion to overcome poor particle preparation often leads to inconsistent results.

Integrated Solutions with DP Pulverizers

PerMix works closely with DP Pulverizers to provide complete milling and 3-D mixing solutions.

DP Pulverizers offers industrial size-reduction technologies including:

• Hammer mills

• Pin mills

• Turbo mills

• Air classifier mills

• Jet mills

These mills prepare powders for optimal downstream 3-D mixing performance.

Learn more about industrial milling solutions here:
👉 https://www.dpmills.com

Why PerMix 3-D Mixers vs Other Manufacturers

PerMix 3-D mixers are engineered around one core principle: true three-dimensional motion must be precise, repeatable, and mechanically disciplined. Many mixers claim “3-D motion,” but only a properly engineered system delivers consistent multi-axis movement without vibration, drift, or product damage.

PerMix builds 3-D mixers for applications where uniformity is non-negotiable and shear is unacceptable.

True 3-D Motion — Not Marketing Language

Some manufacturers label orbital or rocking mixers as “3-D,” even though motion is limited or repetitive.

PerMix 3-D mixers deliver:

• Simultaneous rotation, oscillation, and tumbling

• Continuously changing motion vectors

• No fixed flow paths inside the vessel

This ensures powders never settle into predictable segregation patterns.

Motion Precision That Actually Scales

In a 3-D mixer, motion accuracy matters more than power.

PerMix advantages include:

• Precisely engineered motion arms and linkages

• Controlled speed ratios across all axes

• Smooth acceleration and deceleration profiles

This allows lab-scale results to translate directly into pilot and production systems without reformulation.

Mechanical Stability That Protects the Blend

Multi-axis motion introduces complex mechanical loads. Poor design leads to vibration, noise, and premature wear.

PerMix designs feature:

• Rigid, reinforced frames

• Dynamically balanced vessels

• Oversized bearings and drive components

• Long-term fatigue resistance

The result is stable motion that protects both product integrity and equipment life.

True Low-Shear Mixing — Preserved at All Times

Some manufacturers introduce internal elements or aggressive motion to “speed things up.”

PerMix 3-D mixers:

• Use no internal agitators or blades

• Avoid compression, impact, and friction

• Generate virtually no heat

• Preserve particle shape, size, and surface structure

This is essential for fragile, high-value, and regulated products.

Designed for Cleanliness, Containment & Validation

3-D mixers are frequently used in pharmaceutical and high-purity environments.

PerMix designs include:

• Smooth internal surfaces

• Polished finishes when required

• Minimal crevices and clean welds

• Removable vessel options for containment

• FDA-compliant materials and seals

These features reduce cleaning time and simplify validation.

Honest Application Engineering — Not Forced Fits

PerMix does not oversell 3-D mixers.

Customers benefit from:

• Clear guidance on when 3-D mixing is appropriate

• Honest recommendations when another mixer is better

• Integration support with upstream milling and downstream handling

• Scale-up support from R&D through production

This protects process outcomes and long-term performance.

Lifecycle Value Over Initial Cost

Lower-cost 3-D mixers often suffer from:

• Inconsistent motion

• Vibration and mechanical fatigue

• Limited scalability

• Incomplete blending

PerMix 3-D mixers deliver:

• Predictable, repeatable blending

• Long mechanical service life

• Stable scale-up behavior

• Lower total cost of ownership

At the End of the Day

3-D mixers are chosen when conventional tumble mixing isn’t enough—but shear is not an option.

PerMix 3-D mixers deliver:

• True multi-axis motion

• Exceptional blend uniformity

• Zero internal shear

• Clean, validation-ready construction

• Engineering support beyond delivery

That’s why PerMix 3-D mixers are trusted for pharmaceutical, nutraceutical, specialty chemical, advanced material, and high-value powder applications worldwide.
